sighax and boot9strap

Presentation by SciresM

A Short Summary

At 33c3, we learned the following from derrek:

  • boot9 has a broken RSA verification implementation.
  • It's broken because the ASN.1 parser incorrectly verifies at least one of the length fields.
  • We can't perform sighax ourselves, because we can't get the details required from boot9's parser, because we don't have boot9.

What can we do with that?

A Blast from the Past

  • Nintendo loves reusing concepts and code. Firmware has to parse RSA signatures, too.
  • Initial examinations of NATIVE_FIRM, TWL_FIRM and AGB_FIRM look not vulnerable – though the ASN.1 parser looks very similar to what was described at 33c3, there are stringent padding checks in place.
  • Checks against the sighax vulnerability are present in firmware as early as 0.14 (1.0.0-0), from January 2011.
  • The checks aren't present in firmware earlier than that, including 0.13, which is factory firmware.
  • Factory firmware is vulnerable to sighax.

Factory firmware RSA verification

Picture of sighax-vulnerable ASN.1 parser in Hex-Rays
  • The checks were added in firmware 1.0.0-0.
  • This means Nintendo knew about the vulnerability when making the New 3DS, and did not fix it.
  • wat

    Exploiting a parser, blindly

    • The parser in factory firmware isn't exactly the same as the one in boot9, as learned when a "perfect" signature for factory firmware's parser failed on boot9. What's next?
    • Testing a signature that overflows the factory firmware parser into data-aborting causes the console to show a black screen instead of bootrom error. This means we can crash the bootrom.
    • On factory firmware, the "calculated" hash is on the stack near the signature being parsed. This is probably the case for boot9.

    Exploiting a parser, blindly

    • There are only 128 possible locations, relative to the signature, that can be brute forced in reasonable time. It has to be one of those.
    • Sure enough, brute forcing signatures for each location shows the "calculated" hash is immediately after the signature on the stack. So we have sighax.
    • For those interested in the (complex) math behind optimizing the sighax brute-force, Myria made an additional presentation.

    The bad ASN.1 Parser

    Picture of sighax-vulnerable ASN.1 parser in Hex-Rays

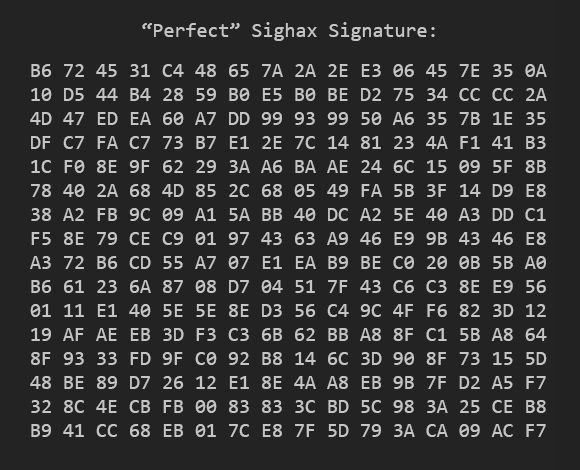

    A "Perfect" Signature

    Encrypted Signature

    How it looks to the parser

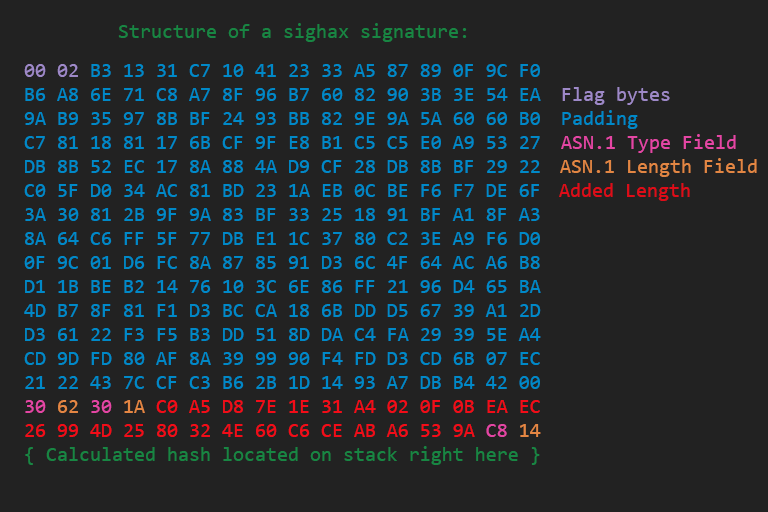

    Decrypted Signature

    So we have sighax. Now what?

    We dump the bootroms, of course!

    Exfiltrating boot9

    • So we can fakesign our own FIRMs.
    • Meaning we can copy our payload almost anywhere.
    • boot9 has a blacklist of ranges... but we know it's not perfect.
    • From 33c3, only the boot9 data regions are blacklisted.
    • Can we find a region that isn't a boot9 data region but is still dangerous?

    ARM9 Memory Map

    10x100000000x10000000I/O Registers
    20x080000000x00100000ARM9-only internal memory ("arm9mem")
    30x080000000x00000400arm9mem (different permissions, details irrelevant)
    40xFFF000000x00004000Data tightly-coupled memory (DTCM)
    50x07FF80000x00008000Instruction tightly-coupled memory (ITCM)
    70x1FFFE0000x00000800AXI WRAM


    • We can copy anything almost anywhere.
    • This includes I/O registers.
    • The NDMA engine is a memory mapped I/O register. This means we can copy data over the NDMA registers, triggering DMA, letting us copy anywhere.
    NDMA can access the (unprotected) part of the bootrom.


    NDMA Parameters

    For an NDMA copy request, we need to set:

    • the global control register to high priority,
    • the source address (0xFFFF8000, the address of the protected boot9),
    • the destination address (any safe place in arm9mem will do),
    • how much data to transfer (32KiB, or 8192 words)
    • some timing data
    • how much to transfer per cycle
    • And now we just copy that to 0x10002000 for a copy request!

    Works for me, too

    SHA-512 (boot9):


    But wait, there's more!

    boot9strap: Reliable boot9/boot11 code execution

    • We can copy data anywhere during firm loading.
    • Including:
      • the exception vectors (using NDMA to bypass the blacklist), and
      • NULL.
    • That's all we need for a data abort, isn't it?
    • It is!

    boot9strap: Big picture idea

    • Section 0: Copy an ARM11 payload into AXI WRAM.
    • Section 1: Copy an ARM9 payload into arm9mem.
    • Section 2: Copy a payload over the NDMA registers that overwrites the data abort vector in arm9mem.
    • Section 3: Load anything to NULL.
    • ???
    • Profit!

    boot9strap: Technical implementation

    • Getting execution during boot9 via data abort is really cool. But it'd also be nice to get execution under boot11. How can we?
    • boot9 dereferences some function pointers from DTCM, and calls them if they aren't NULL (they normally are).
    • Our poisoned data abort vector can overwrite two of these to point at our code, then return to boot9 and let it resume normally.

    boot9strap: Technical implementation

    • Later on, boot9 will call the first of those function pointers (0xFFF00058). This will wait for boot11 to finish a task by watching axiwram, then overwrite a function pointer (0x1FFE802C) it will call later.
    • Immediately before lockout, boot9/boot11 will each dereference function pointers we have poisoned (0xFFF0005C, 0x1FFE802C respectively).
    • We can execute arbitrary code before bootrom lockout under both boot9 and boot11.
    • Bootrom dumps for all!

    Works for me, 2: Electric Boogaloo

    SHA-512 (boot11):


    Bonus fail

    • Upon disassembling boot9, we notice another huge flaw in the bootrom that wasn't mentioned at 33c3.
    • Before trying to boot from NAND, the bootrom checks to see if a key combination (Start + Select + X) is being held, and whether the shell is closed.
    • If so, it tries to boot from an inserted NTR (Nintendo DS) cartridge.

    Bonus fail

    • Combined with sighax/boot9strap, this allows one to make a malicious fake DS cartridge, so that holding down a button combination on boot gives you bootrom code execution.
    • Nintendo tried to make it not possible to abuse by requiring the shell to be closed...
    • But you can just use a magnet.
    • This, like sighax, is also not fixable.
    • The NTR cartridge was likely meant to be used for either the factory setup or as a means of recovering bricked NANDs. However, we'll never know for sure.
    vitcory shibe doge

    @SciresM, @Myriachan, Normmatt, @TuxSH, @Hedgeberg
